Arnott® Ultimate Ride air suspension kit for Harley-Davidson® V-Rod 2002–2023, black, with rebound adjustment
Arnott® Ultimate Ride air suspension kit for Harley-Davidson® V-Rod 2002–2023, black, with rebound adjustment
Arnott® Ultimate Ride air suspension kit for Harley-Davidson® V-Rod 2002–2023, black, with rebound adjustment
Arnott® Ultimate Ride air suspension kit for Harley-Davidson® V-Rod 2002–2023, black, with rebound adjustment
Arnott® Ultimate Ride air suspension kit for Harley-Davidson® V-Rod 2002–2023, black, with rebound adjustment
Arnott®

Arnott® Ultimate Ride air suspension kit for Harley-Davidson® V-Rod 2002–2023, black, with rebound adjustment

Arnott®
24,555 SEK
Tax included
19,644 SEK excl. VAT

Air suspension kit from Arnott's® Ultimate Ride series for Harley-Davidson® V-Rod 2002–2023. Air suspension lets you adjust ride height and comfort, and the kit comes with the parts listed under Includes.

In stock – ships within 1 business day
Check fitment Select your motorcycle

Air suspension kit from Arnott's® Ultimate Ride series for Harley-Davidson® V-Rod 2002–2023. Air suspension lets you adjust ride height and comfort, and the kit comes with the parts listed under Includes.

Features

  • 2 black FOX® shock absorbers
  • Goodyear® air spring sleeves
  • ViAIR high-output compressor with application-specific bracket
  • 6061-T6 billet aluminium construction
  • Handlebar-mounted inflation switch
  • Engineered for motorcycles
  • Fender does not touch the tyre, even when fully deflated
  • Made & tested in USA

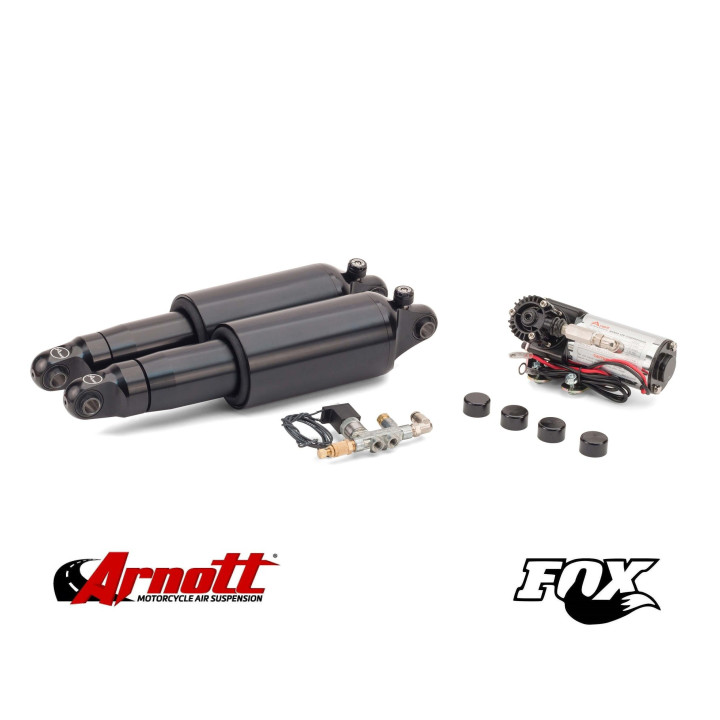

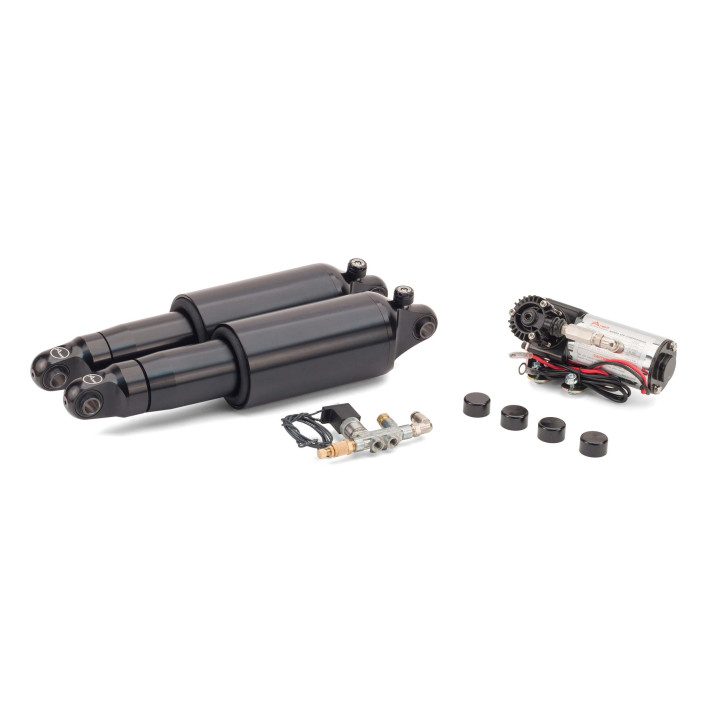

Includes

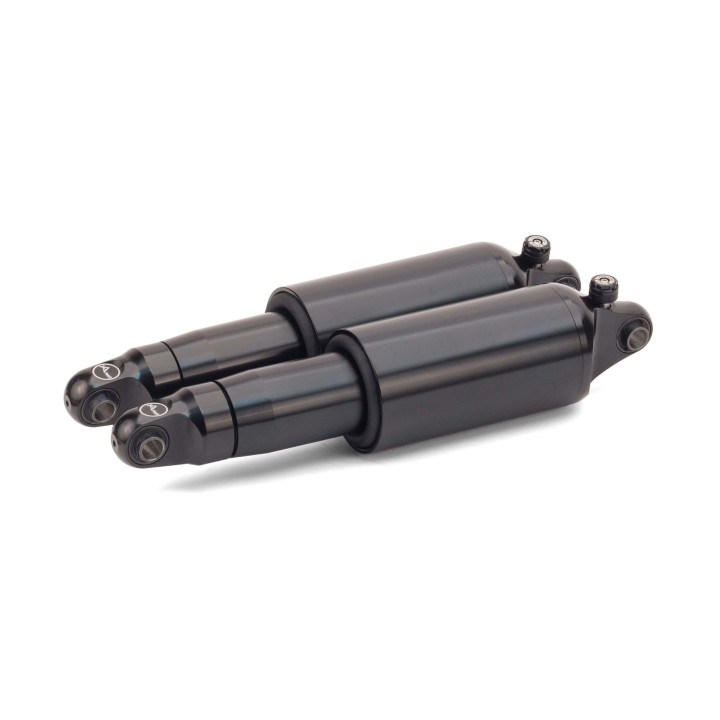

  • 2 black FOX® shock absorbers with rebound adjustment and multi-ply Goodyear® air spring sleeves
  • ViAIR high-output compressor with application-specific bracket

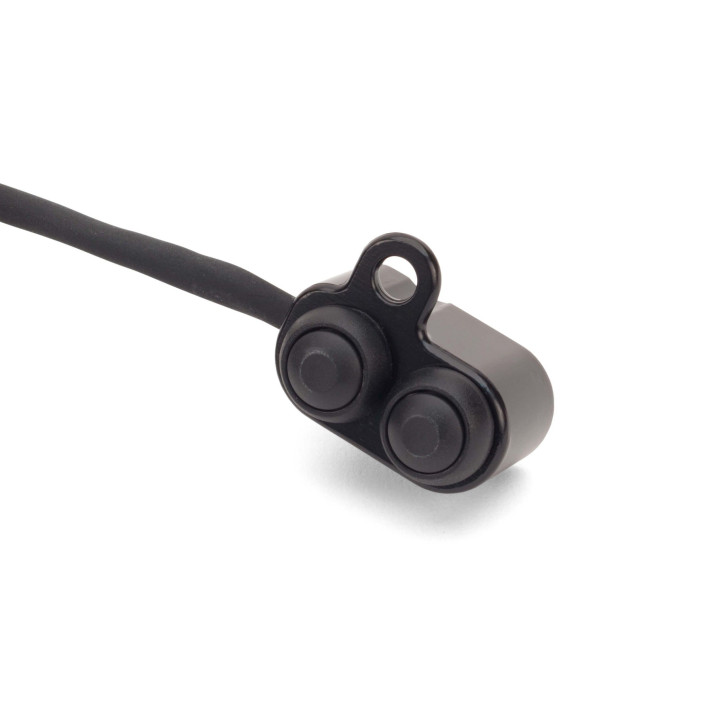

  • Black handlebar-mounted inflation switch
  • Air distribution valve with air-speed control muffler

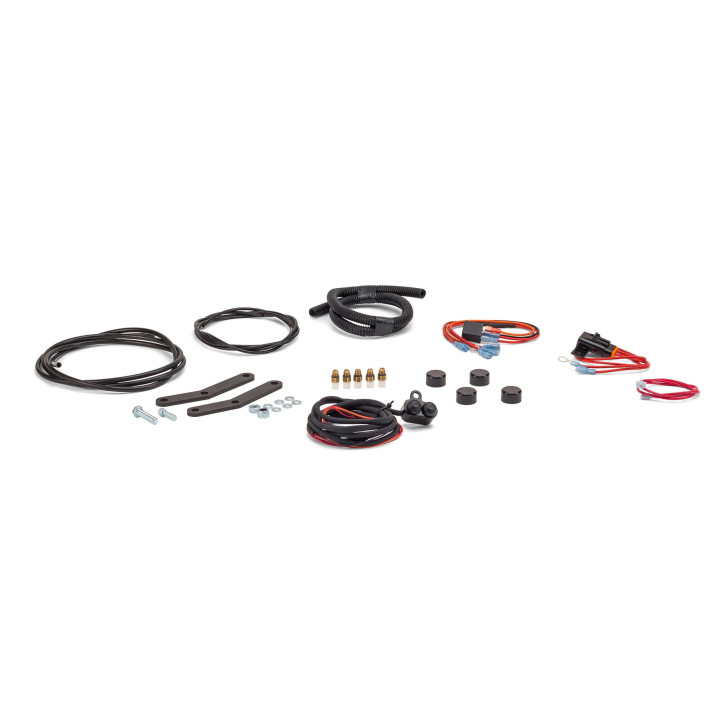

  • Fused wiring harness and relay assembly
  • Mounting bracket
  • All necessary mounting hardware
  • Nylon air line tubing
  • Cable ties
  • Detailed installation manual

Documents

Information according to Arnott®. Check fitment with the year/make/model finder before you order.

  • Brand
  • Reference
    MC-3110
  • In stock
    22 Items
  • UPC
    815710015981
  • EAN13
    0815710015981

  • Position
    Rear
  • Color
    Black
  • Series
    Ultimate Ride
  • Rebound adjustment
    Yes
  • Size
    Standard
  • Minimum length
    266.7 mm
  • Maximum length
    330.2 mm
  • Travel
    63.5 mm
  • Air spring
    Multi-ply Goodyear®
  • Damper
    FOX®
  • Construction
    All CNC billet aluminium components
  • Ride feel
    Comfortable/luxurious
  • Reduces bottoming
    Yes
  • Bottoming bumper
    Urethane
  • Color-matched bolt covers
    Yes
  • Adjustable deflation speed
    Yes
  • Air distribution manifold with release valve
    Yes
  • Warranty
    2 years (Arnott Europe)
